At a glance

  • SWL from 0.5 to 6.3
  • Jib length up to 10 m.
  • Slewing range 0 – 360°
  • Up to 4 ton with electric chain hoist.
  • Up to 6.3 ton with electric wire rope hoist

PILLAR JIB CRANE LS

The pillar jib crane LS has been designed for freestanding installation on the building floor. This workstation crane provides a slew range of 270° with jib arm lengths of up to 7 m and Safe Working Loads (SWL) of up to 1.0 t. Slewing stops allow you to adapt the slewing range to your individual needs.

The pillar jib crane LS is typically used to support lifting tasks that are mostly in the lower capacity range. Loads can be quickly and safely raised and can be transferred effortlessly and precisely thanks to the smooth-running jib arm.

The crane is mounted by means of a round dowel plate with special floor dowels conforming to the permissible dynamic loads. It is also possible to use anchor rods to fix the cranes to foundations or to use intermediate plates with ground anchors.







PILLAR JIB CRANE LSX

The pillar jib crane LSX has been designed for freestanding installation on the building floor. This workstation crane provides a slew range of 270° with jib arm lengths of up to 7 m and Safe Working Loads (SWL) of up to 0.5 t.

The raised jib arm design allows high hook positions for optimal use of the available building space. In addition to the comprehensive standard design, this crane may adapted individually by making use of useful additions such as electric hoist travelling or mobile control.

The crane is mounted by means of a round dowel plate with special floor dowels conforming to the permissible dynamic loads. It is also possible to use anchor rods to fix the cranes to foundations or to use intermediate plates with ground anchors.

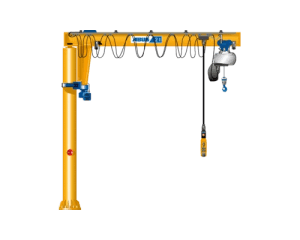

PILLAR JIB CRANE VS

The pillar jib crane VS has been designed for freestanding installation on the building floor. This workstation crane provides a slew range of 360° with jib arm lengths of up to 10 m and Safe Working Loads (SWL) of up to 6.3 t. The low-built design allows high hook positions for optimal use of the available building space. In addition to the comprehensive standard design, this crane may adapted individually by making use of useful additions such as electric slewing, electric hoist travelling or mobile control.







WALL JIB CRANE LW

The wall jib crane LW has been designed to be mounted on a wall or column. This workstation crane provides a slew range of 180° with jib arm lengths of up to 7 m and Safe Working Loads (SWL) of up to 1.0 t.

The wall jib crane LW is an unobtrusive and reliable aid when it comes to moving lighter loads by hand. Its lightweight design allows it and its load to be guided quickly and precisely even at longer jib lengths. This is an effective aid to daily operation.

The wall bracket included in the delivery is used to mount the crane on a steel support within a wall for example. Other mounting solutions are available for different building arrangements.







WALL JIB CRANE LWX

The wall jib crane LWX has been designed to be mounted on a wall or column. This workstation crane provides a slew range of 180° with jib arm lengths of up to 7 m and Safe Working Loads (SWL) of up to 0.5 t.

Low ceilings and lack of floor space are typical criteria for selecting the LWX wall jib crane. Its low-build headroom dimensions offer a favorable lift height. In addition to the comprehensive standard features, this crane may be adapted individually by making use of useful additions such as electric hoist travelling or radio remote control ABURemote.

The wall bracket included in the delivery is used to mount the crane on a steel support within a wall for example. Other mounting solutions are available for different building arrangements.







WALL JIB CRANE VW

The wall jib crane VW has been designed to be mounted on a wall or column. This workstation crane provides a slew range of 180° with jib arm lengths of up to 10 m and Safe Working Loads (SWL) of up to 5 t.

The design of the wall jib crane VW enables the given building dimensions to be used to the fullest extent, so that the transfer of the load is achieved at the highest possible lift height. Wall jib cranes VW feature strong and reliable ABUS wire rope hoists and come all with mobile controls as a standard.
